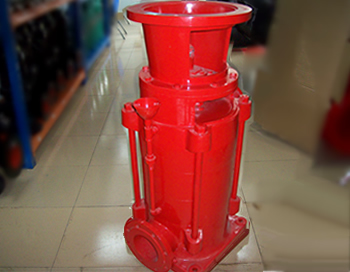

XBD-DLL型消防泵組適用于高低層建筑住宅、醫(yī)院、旅館、百貨大樓、辦公大樓等的消防系統，亦可用于生活供水、空調機組循環(huán)及冷卻水輸送等。
本系列產品主要供吸送稀釋的、清潔的、不腐蝕的、不爆炸的清水及物理化學性質類似水不含固體顆?；蚶w維的液體。
技術參數:
流量范圍:5～60L/s
揚程范圍:0.245～2.549MPa
口徑:50～150㎜
電機功率:3kW～160kW
轉速:2950r/min
介質要求:≤80℃的清水或物理化學性質類似于水的液體
泵組為立式多級節(jié)段式結構，用拉緊螺栓把進水段、中段、出水段夾緊聯成一體。泵每一級裝一個葉輪、一個導葉。
性能參數表：
|
型號 |
級數 |
流量 |
揚程 |
轉速 |
功率 |
效率 |
汽蝕余量 |
外形尺寸 |
重量 | |||
|
L/S |
m3/h |
M |
r/min |
kw |
% |
M |
H |
H2 |
H3 |
Kg | ||
|
XBD2.36/1.72-40DLL×2 |
2 |
1.36 1.72 |
4.9 6.2 7.4 |
23.6 |
1450 |
1.5 |
37 40 39 |
3.19 |
938 |
170 |
/ |
152 |
|
XBD3.54/1.72-40DLL×3 |
3 |
35.4 |
2.2 |
1043 |
230 |
154 |
169 | |||||
|
XBD4.72/1.72-40DLL×4 |
4 |
47.2 |
3 |
1103 |
290 |
214 |
186 | |||||
|
XBD5.90/1.72-40DLL×5 |
5 |
59 |
4 |
1183 |
350 |
274 |
203 | |||||
|
XBD7.08/1.72-40DLL×6 |
6 |
70.8 |
4 |
1243 |
410 |
334 |
220 | |||||
|
XBD8.26/1.72-40DLL×7 |
7 |
82.6 |
5.5 |
1378 |
470 |
394 |
237 | |||||
|
XBD9.44/1.72-40DLL×8 |
8 |
94.4 |
5.5 |
1438 |
530 |
454 |
254 | |||||
|
XBD10.6/1.72-40DLL×9 |
9 |
106.2 |
7.5 |
1538 |
590 |
514 |
271 | |||||
|
XBD11.8/1.72-40DLL×10 |
10 |
118 |
7.5 |
/ |
/ |
/ |
/ | |||||
|
XBD12.9/1.72-40DLL×11 |
11 |
129.8 |
7.5 |
/ |
/ |
/ |
/ | |||||
|
XBD14.1/1.72-40DLL×12 |
12 |
141.6 |
11 |
/ |
/ |
/ |
/ | |||||
|
XBD2.44/3.5-50DLL×2 |
2 |
2.5 |
9 12.6 16.2 |
24.4 |
1450 |
3 |
50 54 52 |
2.58 2.66 3.16 |
1084 |
189 |
/ |
15.3 |
|
XBD3.66/3.5-50DLL×3 |
3 |
36.6 |
3 |
1152 |
257 |
179 |
18 | |||||
|
XBD4.88/3.5-50DLL×4 |
4 |
48.8 |
4 |
1240 |
325 |
247 |
23.1 | |||||
|
XBD6.10/3.5-50DLL×5 |
5 |
61 |
5.5 |
1383 |
393 |
315 |
33 | |||||
|
XBD7.32/3.5-50DLL×6 |
6 |
73.2 |
5.5 |
1451 |
461 |
383 |
24 | |||||
|
XBD8.54/3.5-50DLL×7 |
7 |
85.4 |
7.5 |
1559 |
529 |
451 |
15 | |||||
|
XBD9.76/3.5-50DLL×8 |
8 |
97.6 |
7.5 |
1629 |
597 |
519 |
18 | |||||
|
XBD10.9/3.5-50DLL×9 |
9 |
109.8 |
11 |
1780 |
665 |
587 |
22 | |||||
|
XBD12.2/3.5-50DLL×10 |
10 |
122 |
11 |
/ |
/ |
/ |
/ | |||||
|
XBD3.2/8.3.5-65DLL×2 |
2 |
5 |
18 30 35 |
32 |
1450 |
5.5 |
56 62 60 |
2.41 2.82 3.03 |
1306 |
199 |
/ |
349 |
|
XBD4.8/8.3-65DLL×3 |
3 |
48 |
7.5 |
1426 |
279 |
177 |
390 | |||||
|
XBD6.4/8.3-65DLL×4 |
4 |
64 |
11 |
1591 |
359 |
257 |
460 | |||||
|
XBD8.0/8.3-65DLL×5 |
5 |
80 |
15 |
1716 |
439 |
337 |
509 | |||||
|
XBD9.6/8.3-65DLL×6 |
6 |
96 |
15 |
1796 |
519 |
417 |
537 | |||||
|
XBD11.2/8.3-65DLL×7 |
7 |
112 |
18.5 |
1901 |
599 |
497 |
603 | |||||
|
XBD12.8/8.3-65DLL×8 |
8 |
128 |
22 |
2021 |
679 |
577 |
639 | |||||
|
XBD14.4/8.3-65DLL×9 |
9 |
144 |
22 |
2101 |
759 |
657 |
667 | |||||
|
XBD16.0/8.3-65DLL×10 |
10 |
160 |
30 |
/ |
/ |
/ |
720 | |||||
|
型號 |
級數 |
流量 |
揚程 |
轉速 |
功率 |
效率 |
汽蝕余量 |
外形尺寸 |
重量 | |||
|
L/s |
m3/h |
M |
r/min |
kw |
% |
M |
H |
H2 |
H3 |
Kg | ||
|
XBD4.0/13.8-80DLL×2 |
2 |
9 |
32.4 50 65.2 |
40 |
1450 |
11 |
60 70 66 |
2.2 2.5 2.8 |
1515 |
277 |
/ |
461 |
|
XBD6.0/13.8-80DLL×3 |
3 |
60 |
15 |
1649 |
366 |
235 |
522 | |||||
|
XBD8.0/13.8-80DLL×4 |
4 |
80 |
22 |
1865 |
455 |
315 |
608 | |||||
|
XBD10.0/13.8-80DLL×5 |
5 |
100 |
30 |
2030 |
544 |
395 |
728 | |||||
|
XBD12.0/13.8-80DLL×6 |
6 |
120 |
30 |
2120 |
633 |
475 |
768 | |||||
|
XBD14.0/13.8-80DLL×7 |
7 |
140 |
37 |
2270 |
722 |
555 |
822 | |||||
|
XBD16.0/13.8-80DLL×8 |
8 |
160 |
45 |
2385 |
811 |
635 |
898 | |||||
|
XBD18.0/13.8-80DLL×9 |
9 |
180 |
45 |
2475 |
900 |
715 |
938 | |||||
|
XBD20.0/13.8-80DLL×10 |
10 |
200 |
55 |
/ |
/ |
/ |
/ | |||||
|
XBD4.0/20-100DLL×2 |
2 |
14 |
50.4 72 86.4 |
40 |
1450 |
15 |
62 72 71 |
2.2 2.8 3.1 |
1616 |
293 |
/ |
521 |
|
XBD6.0/20-100DLL×3 |
3 |
60 |
18.5 |
1784 |
396 |
220 |
599 | |||||
|
XBD8.0/20-100DLL×4 |
4 |
80 |
30 |
1932 |
499 |
232 |
727 | |||||
|
XBD10.0/20-100DLL×5 |
5 |
100 |
37 |
2060 |
602 |
426 |
781 | |||||
|
XBD12.0/20-100DLL×6 |
6 |
120 |
37 |
2248 |
705 |
529 |
821 | |||||
|
XBD14.0/20-100DLL×7 |
7 |
140 |
45 |
2421 |
808 |
632 |
897 | |||||
|
XBD16.0/20-100DLL×8 |
8 |
160 |
55 |
2524 |
911 |
735 |
1044 | |||||
|
XBD18.0/20-100DLL×9 |
9 |
180 |
55 |
2677 |
1014 |
838 |
1084 | |||||
|
XBD20.0/20-100DLL×10 |
10 |
200 |
75 |
/ |
/ |
/ |
/ | |||||
|
XBD4.0/28-100DLL×2 |
2 |
20 |
72 100 126 |
40 |
1450 |
18.5 |
65 72 70 |
2.9 3.5 4.4 |
1616 |
293 |
/ |
554 |
|
XBD6.0/28-100DLL×3 |
3 |
60 |
30 |
1784 |
396 |
220 |
687 | |||||
|
XBD8.0/28-100DLL×4 |
4 |
80 |
37 |
1932 |
499 |
323 |
746 | |||||
|
XBD10.0/28-100DLL×5 |
5 |
100 |
45 |
2060 |
602 |
426 |
827 | |||||
|
XBD12.0/28-100DLL×6 |
6 |
120 |
55 |
2248 |
705 |
529 |
979 | |||||
|
XBD14.0/28-100DLL×7 |
7 |
140 |
75 |
2421 |
808 |
632 |
1159 | |||||
|
XBD16.0/28-100DLL×8 |
8 |
160 |
75 |
2524 |
911 |
735 |
1204 | |||||
|
XBD18.0/28-100DLL×9 |
9 |
180 |
90 |
2677 |
1014 |
838 |
1354 | |||||
|
XBD20.0/28-100DLL×10 |
10 |
200 |
90 |
/ |
/ |
/ |
/ | |||||
|
型號 |
級數 |
|
流量 |
揚程 |
轉速 |
功率 |
效率 |
汽蝕余量 |
外形尺寸 |
重量 | ||
|
L/s |
m3/h |
M |
r/min |
kw |
% |
M |
H |
H2 |
H3 |
Kg | ||
|
XBD4.0/42-150DLL×2 |
2 |
30 |
108 150 180 |
40 |
1450 |
30 |
75 80 78 |
2.2 2.8 2.7 |
1680 |
315 |
/ |
569 |
|
XBD6.0/42-150DLL×3 |
3 |
60 |
37 |
1840 |
430 |
260 |
707 | |||||
|
XBD8.0/42-150DLL×4 |
4 |
80 |
45 |
2020 |
545 |
375 |
771 | |||||
|
XBD10.0/42-150DLL×5 |
5 |
100 |
55 |
2260 |
600 |
490 |
857 | |||||
|
XBD12.0/42-150DLL×6 |
6 |
120 |
75 |
2445 |
775 |
605 |
1060 | |||||
|
XBD14.0/42-150DLL×7 |
7 |
140 |
75 |
2610 |
890 |
720 |
1245 | |||||
|
XBD16.0/42-150DLL×8 |
8 |
160 |
90 |
2725 |
1005 |
835 |
1295 | |||||
|
XBD4.0/45-150DLL×2 |
2 |
30 |
108 160 180 |
40 |
1450 |
37 |
72 76 73 |
3.1 3.5 3.8 |
1995 |
350 |
/ |
873 |
|
XBD6.0/45-150DLL×3 |
3 |
60 |
55 |
2235 |
480 |
235 |
1086 | |||||
|
XBD8.0/45-150DLL×4 |
4 |
80 |
75 |
2435 |
610 |
338 |
1291 | |||||
|
XBD10.0/45-150DLL×5 |
5 |
100 |
90 |
2615 |
740 |
441 |
1466 | |||||
|
XBD12.0/45-150DLL×6 |
6 |
120 |
110 |
2900 |
870 |
544 |
1633 | |||||
|
XBD14.0/45-150DLL×7 |
7 |
140 |
132 |
3075 |
1000 |
647 |
1803 | |||||
|
XBD16.0/45-150DLL×8 |
8 |
160 |
132 |
3210 |
1130 |
750 |
1873 | |||||
|
XBD18.0/45-150DLL×9 |
9 |
180 |
160 |
3340 |
1260 |
853 |
2003 | |||||
|
XBD4.0/83-200DLL×2 |
2 |
58.3 |
210 300 360 |
40 |
1450 |
55 |
70 79 78 |
4.2 5 5.5 |
2010 |
425 |
/ |
983 |
|
XBD6.0/83-200DLL×3 |
3 |
60 |
75 |
2320 |
755 |
355 |
1196 | |||||
|
XBD8.0/83-200DLL×4 |
4 |
80 |
110 |
2660 |
725 |
505 |
1845 | |||||
|
XBD10.0/83-200DLL×5 |
5 |
100 |
132 |
2860 |
875 |
655 |
1975 | |||||
|
XBD12.0/83-200DLL×6 |
6 |
120 |
160 |
3010 |
1025 |
805 |
2120 | |||||
|
XBD6.0/80-200DLL×2 |
2 |
50 |
1, , , 80 288 324 |
60 |
1450 |
75 |
71.2 77.9 76.9 |
3 3.7 4.4 |
2185 |
425 |
/ |
/ |
|
XBD9.0/80-200DLL×3 |
3 |
90 |
110 |
2355 |
575 |
355 |
/ | |||||
|
XBD12.0/80-200DLL×4 |
4 |
120 |
132 |
2795 |
725 |
505 |
/ | |||||
|
XBD15.0/80-200DLL×5 |
5 |
150 |
160 |
2945 |
875 |
655 |
/ | |||||
|
XBD18.0/80-200DLL×6 |
6 |
180 |
200 |
3095 |
1025 |
805 |
/ | |||||
